● 20 ranges in 6 functions
● AC/DC voltage measurement up to 1000V
● DC current measurement up to 10A
● Resistance measurement up to 20MΩ
● Diode and continuity test
● Transistor polarity judgement
● Fuse: F500mA/250V F10A/250V
● Input impedence: 20KΩ/DCV/ 9KΩ/ACV

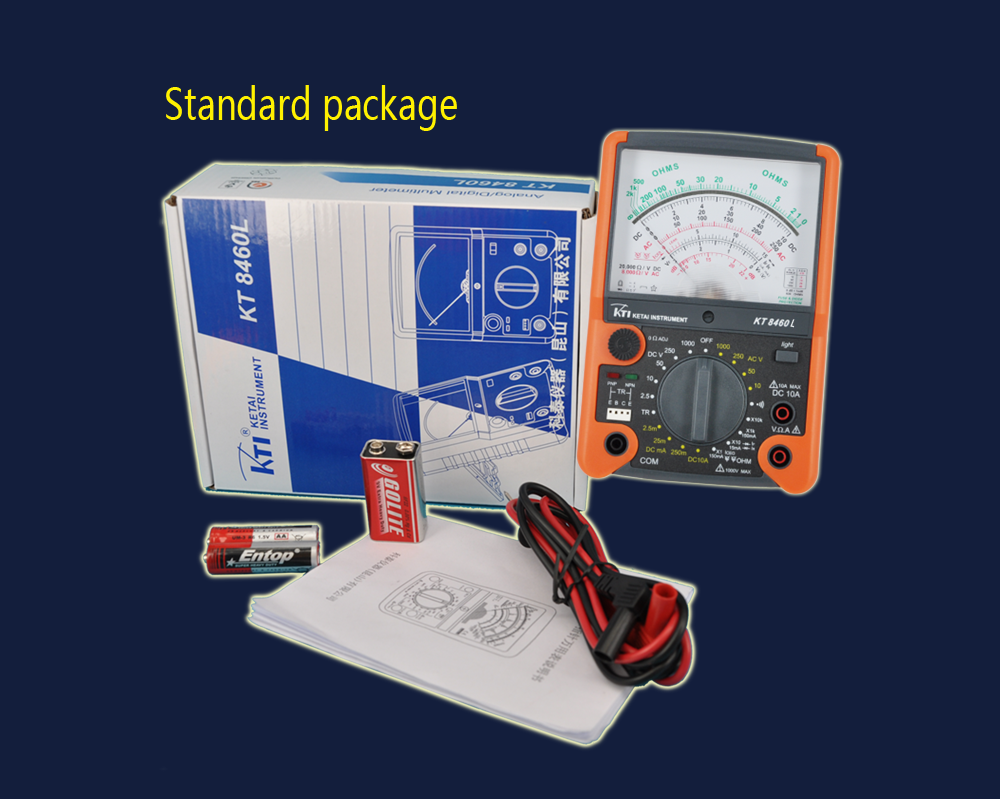

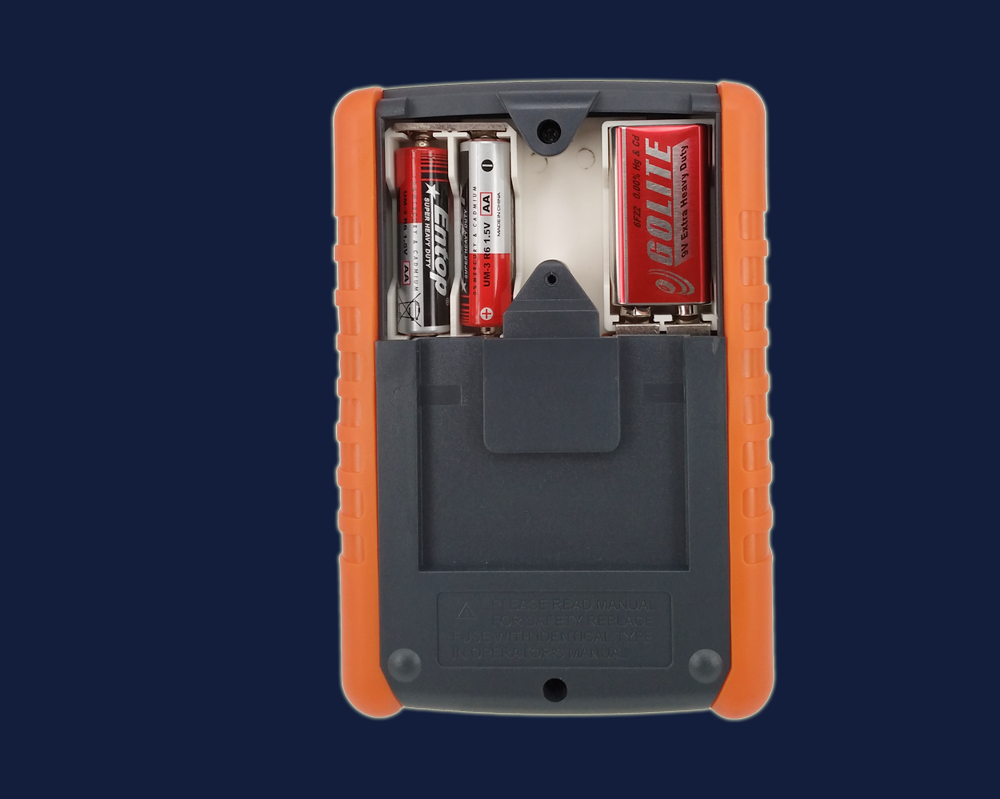

● Accessories included: 1.5V batteryX1, 9V batteryX1,test leads, English manual, giftbox

SPECIFICATIONS
DCV 2.5~1000V(±3% fs)
ACV 10~1000V(±4% fs)
DCA 2.5m~10A(±3% fs)
Ω 2K~20MΩ(±3% full arc)
Continuity& Buzzer √
dB -10~62dB(0dB 1Mw/600Ω)
Transistor polarity √
Diode RX10 L1 15mA LV3V
Size 158X108X42mm
weight Approx. 390g included battery

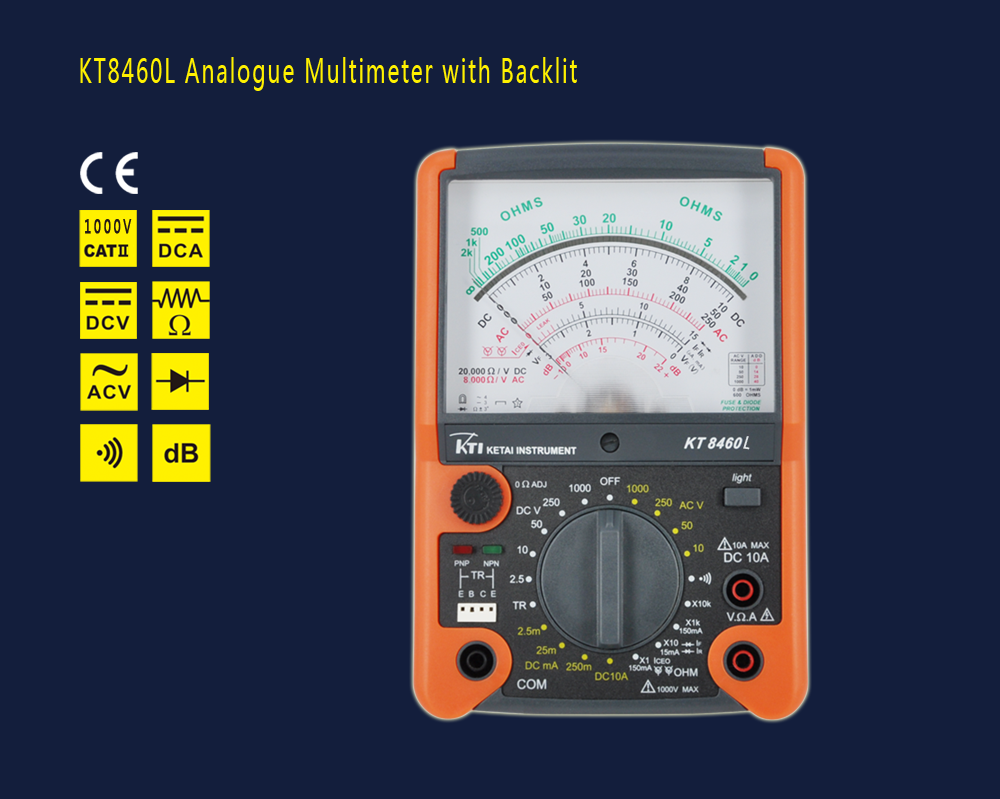

The backlight function will consume more battery power, the light will be automatically turned off in 15 seconds.

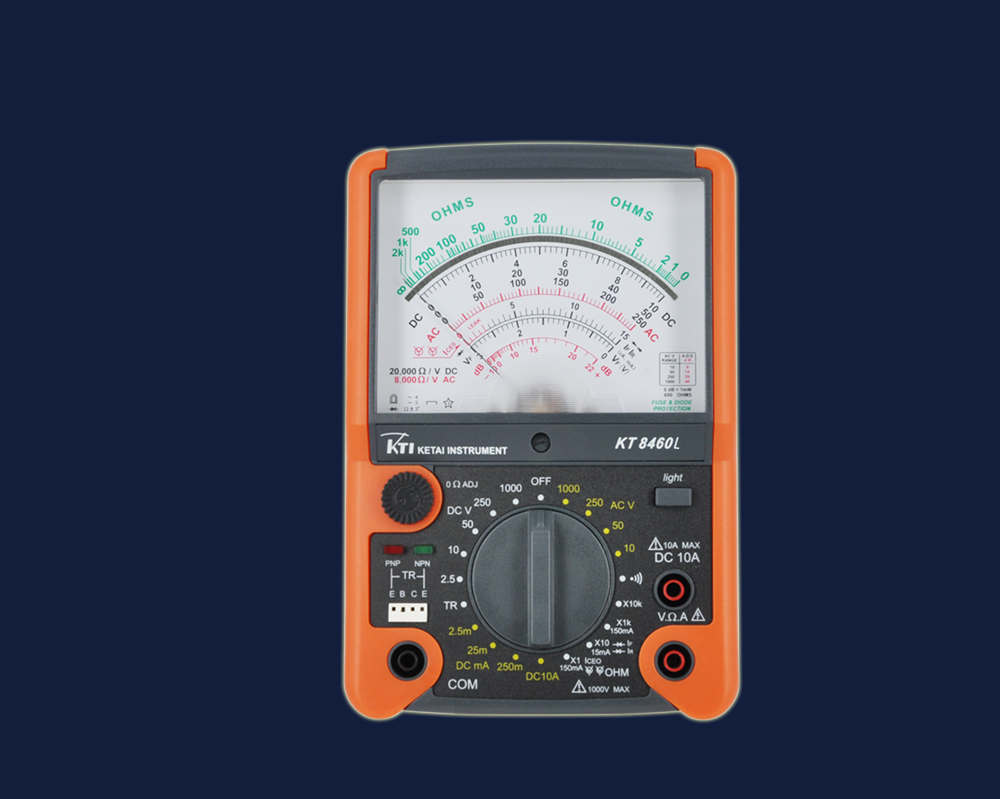

KT8460L can measure both AC and DC up to 1000V.
KT8460L has transistor polarity judge function indicating by LED.
Structure feature:
Large display with side sliding protective holster

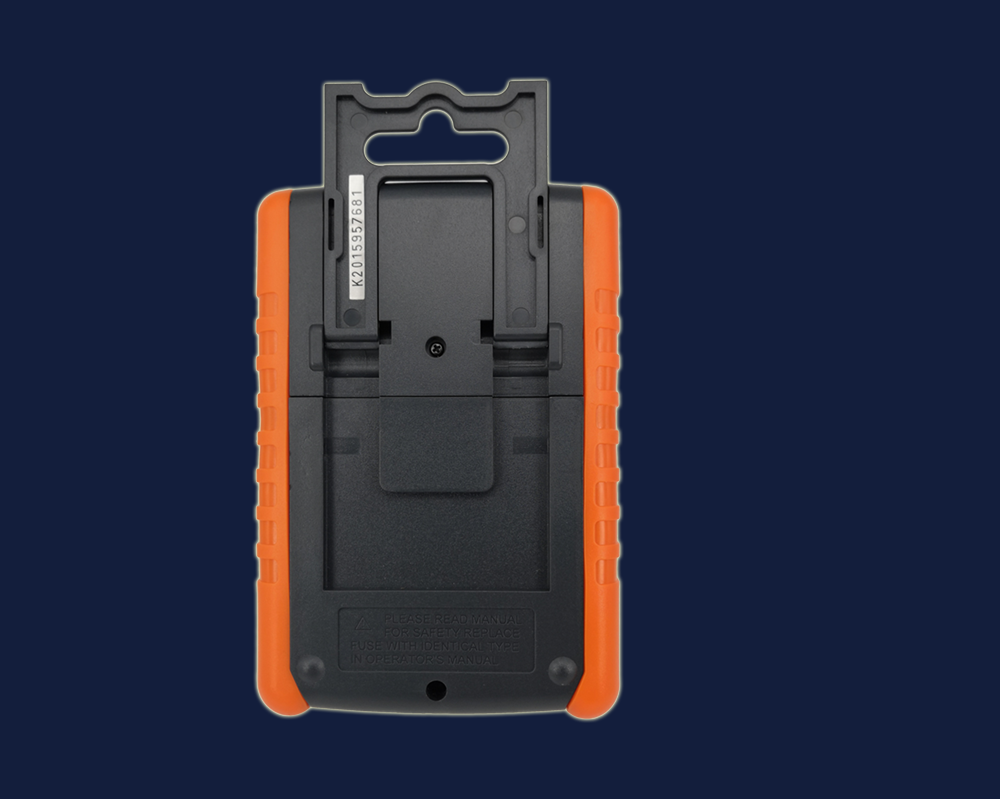

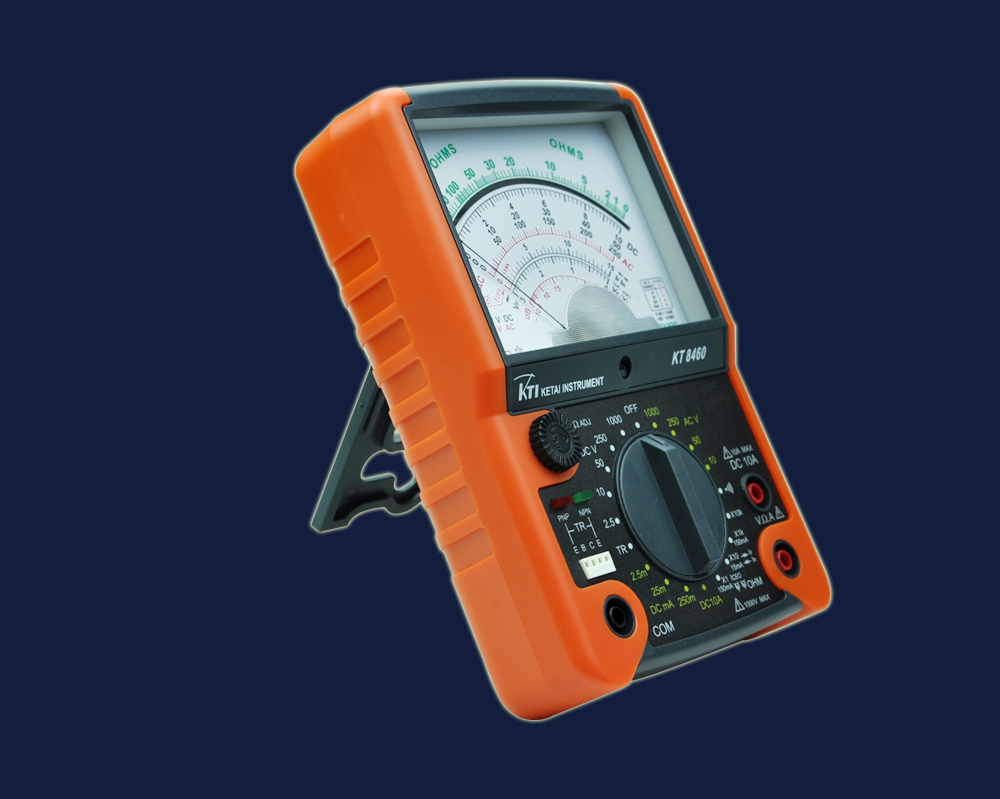

Hangable supporting stand.

Read user's manual and choose correct funtion and range.
Never input high voltage into current or resistance ranges to avoid cause damage to the meter.
If the meter is not working or have trouble in opearting, please send it to the qualified person for help or repair, do not try to repair the meter by yourself.
